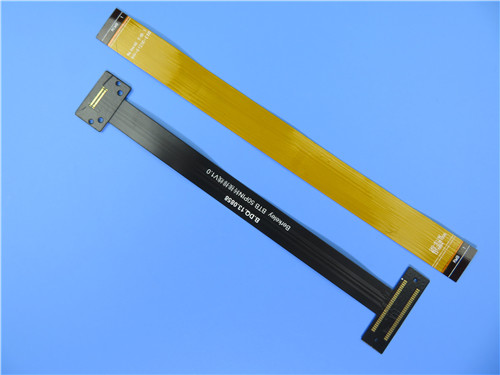

Flexible PCB Board With Single Layer Double Sided and Multilayer Structure

Name: Flexible PCB Board With Single Layer Double Sided and Multilayer Structure
Brand: Bicheng Enterprise Limited
Price: 2.99 USD

Flexible PCB Board With Single Layer Double Sided and Multilayer Structure Manufactures

Brand Name : Bicheng Enterprise Limited

Model Number : BIC-0348-V3.48

Certification : UL

Place of Origin : CHINA

MOQ : 1 PIECE

Price : USD2 .99-9.99 per piece

Payment Terms : T/T,Paypal

Supply Ability : 50000 PIECE PER MONTH

Delivery Time : 8-9 WORKING DAY

Packaging Details : VACUUM

Board Material : PI, PET

Board Thickness : 0.03mm-3.0mm

Surface/Inner layer Cu thickness : 0.5oz, 1oz, 2oz

Surface Finish : Immersion Gold, Immersion Sliver, Immersion Tin

Coverlay Colour : Yellow, White, Black, Green

Color of Silkscreen : Yellow, White, Black, Green

Function : 100% Pass electrical test

Number of Layers : Single layer, Doulbe layer, Multilayer, Rigid-Flex

Contact Now

Flexible PCB Board With Single Layer Double Sided and Multilayer Structure

Overview
A breakdown of a flexible circuit shows that it consists of 3 basic elements: copper foil, dielectric material and adhesive. Most of the manufacturing processes, i.e. imaging transfer, plating and etching, are quite similar to those used when producing plated-through boards. However, there're differences due to the thin and floppy material used in flexible circuits.

Bicheng Flexible Printed Circuit Capability 2019
No.	Specifications	Capabilities
1	Board Type	Single layer, Doulbe layer, Multilayer, Rigid-Flex
2	Base Material	PI, PET
3	Copper Weight	0.5oz, 1oz, 2oz
4	LED Maximum Size	250 x 5000mm
5	General Maximum Size	250 x 2000mm
6	Board Thickness	0.03mm-3.0mm
7	Thickness Tolerance	±0.03mm
8	Mininum Drill Hole	0.05mm
9	Maximum Drill Hole	6.5mm
10	Tolerance of Drill Hole	±0.025mm
11	Thickness of Hole Wall	≧ 8 um
12	Minimum Track/Gap of Single Layer Board	0.025/0.03mm
13	Minimum Track/Gap of Double Layer and Multilayer Board	0.03/0.040mm
14	Etching Tolerance	±0.02mm
15	Minimum Width of Silk Legend	≧ 0.125mm
16	Minimum Heigh of Silk Legend	≧0.75mm
17	Distance from Legend to Pad	≧0.15mm
18	Distance from Opening Solder Mask of Drill Coverlay to Track	≧0.03mm
19	Distance from Opening Solder Mask of Punching Coverlay to Track	≧0.03mm
20	Thickness of Immersion Nickel	100-300u"
21	Thickness of Immersion Gold	1-3u"
22	Thicnkess of Immersion Tin	150-400u"
23	Minimum Electrical Testing Pad	0.2mm
24	Minimum Tolerance of Outline(Normal Steel Mould Punch)	±0.1mm
25	Minimum Tolerance of Outline (Precision Steel Mould Punch)	±0.05mm
26	Mininum Radius of Bevel Angle (Outline)	0.2mm
27	Stiffner Material	PI, FR-4, 3M Adhesive, PET, Steel Sheet
28	RoHs	Yes
29	Solder Mask Colour	Yellow, White, Black, Green

Purpose of Flexible Circuits
1) To provide interconnections between printed circuit boards and other components.
2) To serve as three-dimensional substrates for the mounting of SMT components, e.g., in
photographic and video cameras.
3) To establish interconnections capable of withstanding dynamic flexing.
4) To form part of rigid-flex circuit boards.

Advantages
1) Flexibility
2) Volume decreases
3) Weight reduces
4) Consistency of SMD mounting
5) Reliability increases
6) Controllability of electrical design of parameters
7) Tin soldered overall on the FPC end
8) Material optional (PI, PET)
9) Low cost
10) Continuity of processing

Applications

Thin-film switch, capacitive touch screen / panel, keypad FPC, laser head FPC,
General purpose LED soft light strip, mobile phone built-in antenna FPC Touch screen,
Telephone receiver / earphone FPC, contact belt of inkjet printer, Toy lamp strip,
LCD module, instrument panel, flexible flat cable, display backlight etc.
